High Efficiency Low Energy Consumption, Safe And Reliable Plastic Shredder
Plastic shredder is a mechanical device used to treat plastic waste. By tearing or crushing, large volumes or blocks of plastic materials are reduced to a smaller size, which facilitates subsequent recycling, reuse or treatment.
Application and features of shredder
It is mainly used to crush plastic waste such as packaging belts, tires, films, woven bags, fishing nets, etc., and realize resource utilization. It adopts dual-axis independent driving, unique tool shaft structure and four-angle rotary tool, which can be used to improve production efficiency during the production process with low speed and high torque, no winding shafts, clamping devices, etc.
Product application fields
Metal recycling field
Processing automotive shells, household appliance metal parts, etc., and the metal recovery rate after crushing is increased by 40%.
Plastic recycling industry
Solve the winding problem of PE tube/bundle film, the output particle size is ≤50mm, and meets the granulation requirements
Special industrial scenarios
Preparation of tire rubber particles (3-5cm rubber blocks) Harmless crushing of food industry waste (requires stainless steel material to be anti-corrosion)
Product Display of Metallurgy Machine
Metallurgy Machine
Shredder Main Technical Parameters
| Shredder Model | SX-B 600 | SX-B 800 | SX-B 1000 | SX-B 1200 | SX-B 1600 | | Diameter Rotary | 255mm | 255mm | 300mm | 300mm | 300mm | | Rotate the number of knives | 60pcs | 78pcs | 96pcs | 114pcs | 1501pcs | | Rotate the cutter shaft speed | 90rpm | 90rpm | 90rpm | 90rpm | 90rpm | | Number of fixed knives | 4pcs | 4pcs | 4pcs | 8pcs | 8pcs | | Maximum yield | 650kg/h | 900kg/h | 1000kg/h | 1200kg/h | 1500kg/h | | Feeding caliber | 700mm*800mm | 880mm*1100mm | 1070mm*1150mm | 1280mm*1300mm | 1650mm*2000mm | | Power of main motor | 18.5KW*2 | 22KW*2 | 30KW*2 | 37KW*2 | 45KW*2 | | Host weight | 4000kg | 5400kg | 6200kg | 8000kg | 9500kg | |
Metallurgy Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After Sales Service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
|
|

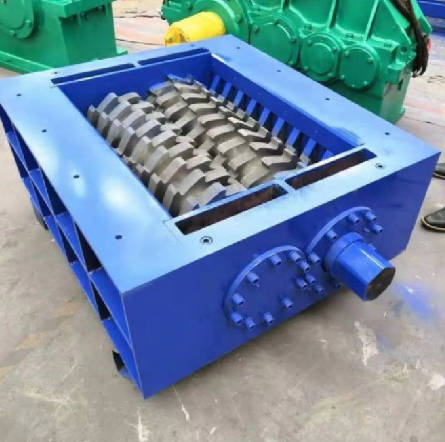

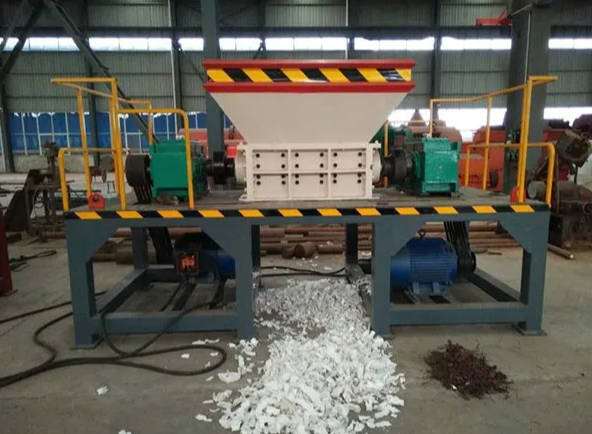

High Efficiency Low Energy Consumption, Safe And Reliable Plastic Shredder Images
|
