Highly Efficient Ultrafine Grinding Mill For Kaolin Limestone And Calcite
Ultrafine Powder Mill is a mechanical equipment used for grinding materials into ultrafine powder, widely applied in metallurgy, building materials, chemical industry, mining and other fields.
Ultrafine Powder Mill
Uses and ApplicationsThe ultrafine powder mill is mainly used for grinding conventional materials, namely non-flammable materials with humidity below 8% and Mohs hardness below 6, such as kaolin, limestone, calcite, talc, marble, barite, gypsum, red iron oxide, green iron oxide, aluminum hydroxide, pigments, bentonite, clay, etc.
Main Features
- High Efficiency and Low Consumption:Under the same fineness and power conditions, the output is higher than traditional equipment, with energy consumption reduced by 30%-50%.
- Wide Range of Fineness:The finished product fineness can be adjusted between 325-3000 mesh to meet different needs.
- Strong Applicability:Suitable for brittle materials with Mohs hardness ≤6, such as calcite, talc, kaolin, etc.
- Environmental Protection and Safety:Equipped with dust removal and noise reduction systems to reduce pollution and noise.
- Easy Maintenance:Reasonable structural design makes replacement of wearing parts simple and maintenance costs low.
Technical Data of Ore Grinding Mill
| Model | XM80 | XM90 | XM100 | XM100A | XM125 | | Average working diameter/mm | 800 | 930 | 1035 | 1035 | 1300 | | Quantity of ring track/layer | 3 | 3~4 | 3 | 4 | 4 | | quantity of roller/piece | 21 | 24~32 | 27 | 34~36 | 40~44 | | Rotational speed of main shaft/r.p.min | 230~240 | 200~220 | 180~200 | 180~200 | 135~155 | | Feeding particle size/mm | ≤20 | | Range of finished product particle size/um(mesh) | 5-47(325~2500) | | Yield of finished product t/H | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 | | External dimension length*height*width/m | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 | | Whole unit capacity/KW | 145-165 | 185-204 | 263 | 263-290 | 380-430 | |

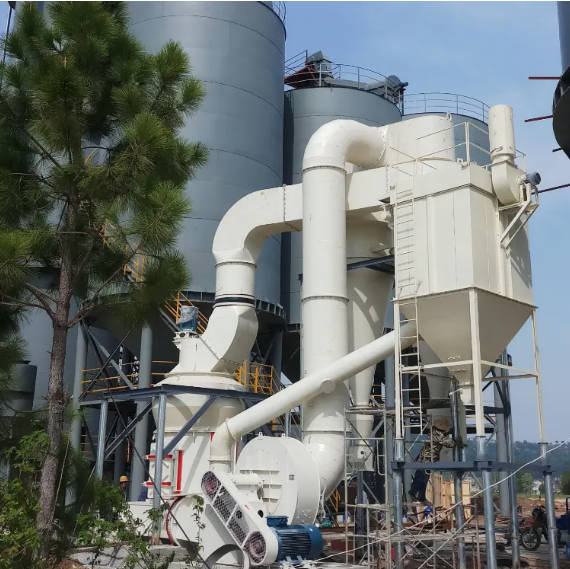

Product Display of Ore Grinding Mill
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After Sales Service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
Product Tags:
|
|
Highly Efficient Ultrafine Grinding Mill For Kaolin Limestone And Calcite Images
|
