Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line

  • 1
  • 2
  • 3

Brand Name : ZTIC

Model Number : Cement Rotary Kiln

Certification : ISO/CE

Place of Origin : Henan，China

MOQ : 1 set/sets

Price : negotiate

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 Set/Sets per Year

Packaging Details : Standard packing or according to customer's requirement

Name : Φ3.5×54m Zinc oxide rorary kiln

Condition : New

Motor Type : YSNP355M2-10

Supporting device : split sleeve bearing

Production capacity : 600 t/d

Kiln head sealing device : 1450 t

Keyword : China rotary kiln

Classification : Cement Rotary Kiln

Port : Qingdao China

After-sales Service Provided : Online support, Field installation, commissioning and training, Video technical support

Weight : 341-637

Contact Now

Company introduction

Our company is specializing in mining machinery and equipment manufacturers, ball mill, rotary kiln, elevator accessories, large casting and forging parts, size gear is the company's business strengths.We design and supply cement rotary kilns including dry cement rotary kilns, semi-dry cement rotary kilns and wet cement rotary kilns.

Product presentation

Metallurgical rotary kiln ‌ is a kind of material calcining equipment specially developed for metallurgical field, which has wide application prospect and market value. It is mainly used in various heat treatment and smelting processes in metallurgical industry, such as the heat treatment and smelting of steel, non-ferrous metals, iron alloys and other substances ‌.

Technical feature

The kiln body of the metallurgical rotary kiln is rolled with high-quality sedated carbon steel or alloy steel plate and welded automatically

Alloy cast steel is used for wheel belt, support wheel and open gear of metallurgical rotary kiln

The sliding bearing of metallurgical rotary kiln adopts the bearing with large clearance and no scraping tile

The kiln head and the kiln tail are respectively sealed by flake superposition and cylinder compression

Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production LineMetallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line

Product Parameter

Specification (m) Figure Basic parameter Main motor Type of stop wheel Pedestal bearing Weight (t)
Speed r/min Slope % Output t/d Power kw
Φ3.45×52 J968 0.35 ～0.8 5 350 75 hydraumatic roll 412.5
Φ4×58 J978 0.35 ～3.5 5 400 250 hydraumatic slide 341
Φ4.15×58.2 J975 0.35 ～0.7 5 756 55 ×2 roll 637

Product Tags:

600t/d Cement Rotary Kiln



metallurgical Cement Rotary Kiln



600t/d chemical rotary kiln


China Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line wholesale

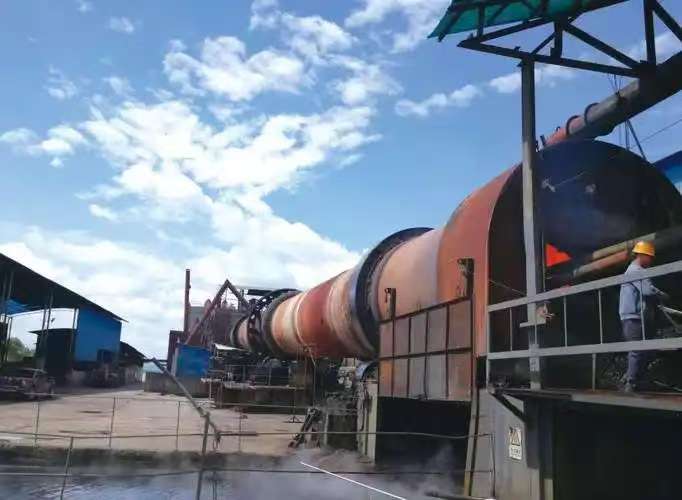

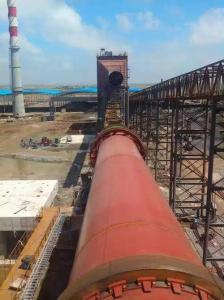

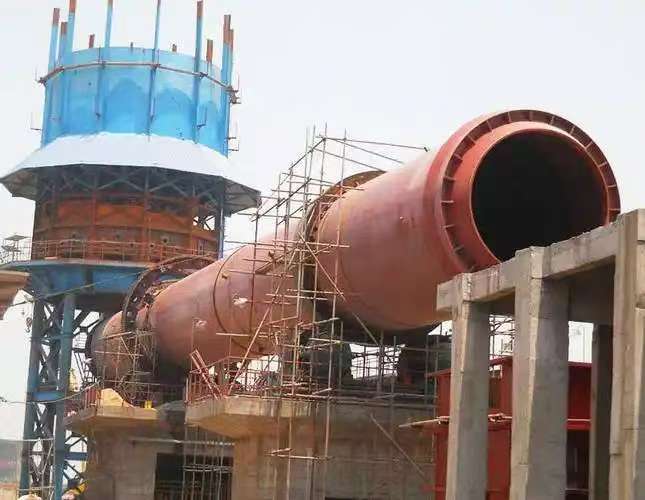

Metallurgical Industry 600t/D Zinc Oxide Cement Rotary Kiln Complete Production Line Images
