1. Introduction of Steel converter, copper converter and converter under 300T for metallurgy machine
Luoyang mining machinery Factory can design and produce various specifications of vertical/horizontal converter converter below 300t. Including steel-making converter, copper smelting converter, converter of various specifications below 250T, vertical converter, horizontal converter.
Converter steel-making is made of molten iron, scrap steel and ferroalloy as the main raw materials. Without external energy, the process of steel-making is completed in converter by the physical heat of molten iron itself and the heat generated by the chemical reaction between the components of molten iron. The converter is divided into acid and alkaline according to the refractory material, according to the parts of the gas blowing into the furnace with top blowing, bottom blowing and side blowing; According to the type of gas for air converter and oxygen converter. The bof is the most commonly used steel-making equipment because of its fast production speed, large output, high output of single furnace, low cost and less investment. The converter is mainly used for the production of carbon steel, alloy steel and copper and nickel smelting.
2. Product parameters of Steel converter, copper converter and converter under 300T for metallurgy machine
Main technical and economic indicators Take 150-300T converter as an example, the main technical and economic indicators are as follows:
| Smelting cycle | 30min |
| Among them: oxygen blowing time | 16~20min |
| Oxygen consumption | 48~58m3/t |
| Iron and steel consumption | 1060~1150kg/t |
| Scrap than | 15%~30% |
| Limestone consumption (including dolomite) | 30-70kg/t |
| Fluorite consumption | 0.0~3.0kg/t |
| Iron ore consumption | 30~50kg/t |
| Furnace lining refractory consumption | 3~7kg/t |
| Power consumption | 9~12kw·h/t |
| Annual output (nominal tonnage) | 10000~15000t |
3. Cases related to steel-making converter for metallurgy machine

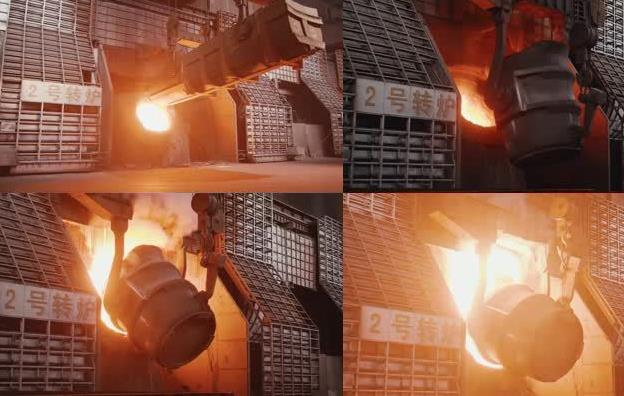

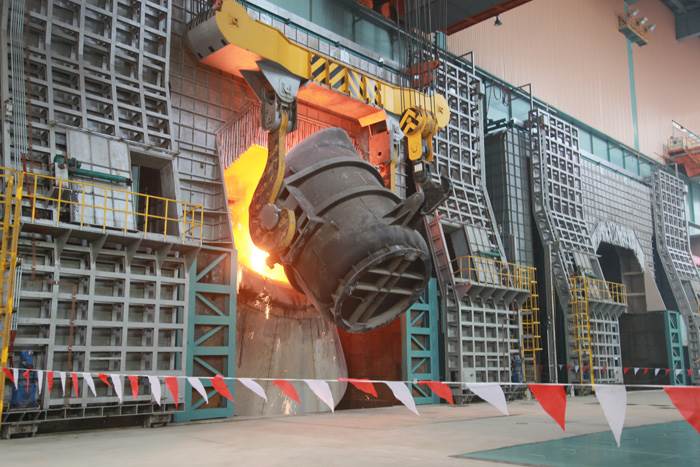

The 250-ton converter of Baosteel, the largest domestic specification manufactured by CITIC Heavy Industry, was successfully put into operation
On April 15, 2012, the successful hot test of the phase II steel making continuous casting project of Baosteel Meisteel Co., LTD marked the successful operation of the two 250-ton converters produced by CITIC Heavy Industrial Machinery Co., LTD., the largest in China. Xu Fengqi, general manager of CITIC Heavy Industrial Machinery Co., Ltd. was invited to attend the hot test ceremony.
The successful hot test of the phase II steel making continuous casting project of Baosteel Group Mei-Steel Co., Ltd. marks the successful operation of the two 250-ton converters produced by CITIC Heavy Industrial Machinery Co., LTD., the largest in China. Xu Fengqi, general manager of CITIC Heavy Industrial Machinery Co., Ltd. was invited to attend the hot test ceremony.
It is a great innovation to manufacture such a large converter independently in the same industry in China. Jiang Yifeng, deputy general manager of Meigang, said: "Citic Heavy is the best supplier of the second phase of Meigang project, with the best product quality and first-class equipment and service, which truly shows the elegance of a world-class enterprise. "We are willing to work with Citic Heavy To make the project a demonstration project and promote deeper and broader cooperation between Citic Heavy and Baosteel group."
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
